Sportsman 570 Orange Rust Non Metallic Specifications

Find specifications below for the 2023 Polaris Sportsman 570 Orange Rust Non Metallic ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

Engine and Drivetrain

Active Descent Control
Not Equipped
Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
One Touch On-Demand AWD/2WD
Engine Braking System (EBS)
Not Equipped
Engine Type
ProStar 4-Stroke DOHC Single Cylinder
Fuel System/Battery
Electronic Fuel Injection / 340 CCA
Horsepower
44 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting

Dimensions

Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
701 lb (318 kg)
Front/Rear Rack
90 lb /180 lb (40.8 kg /81.6 kg)
Fuel Capacity
4.5 gal (17.0 L)
Ground Clearance
11.5 in (29 cm)

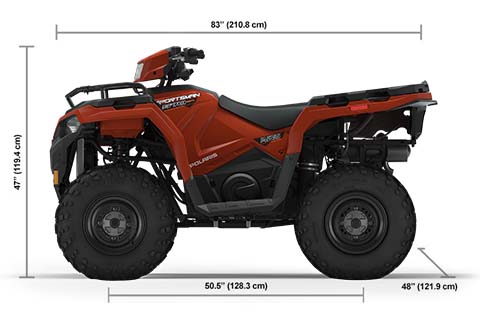

Overall Vehicle Size (L x W x H)
83 x 48 x 47 in (210.8 x 121.9 x 119.4 cm)
Payload Capacity
485 lb (220 kg)
Person Capacity
1
Seat Height (Laden)
33.25 in (84.5 cm)
Wheelbase
50.5 in (128.3 cm)

Brakes

Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever

Specifications

Cargo System
Lock & Ride Compatible 5 Gal (18.9L) Front Dry Storage
Front Suspension
Sealed MacPherson Strut With 8.2 in (20.8 cm) Travel
Hitch Towing Rating
1,350 lb (612 kg)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light
Lighting
Halogen Pod & Bumper Lights, Triple 50w High Beams, Dual 50w Low Beams, Single LED Brake Light/Taillight
Other Standard Features
Front Rack Extender, 12 Volt Power Plug, Pre-Wired for Hand & Thumb Warmers, In Pod Battery Charger, Winch Mount Included
Rear Suspension
Sealed Dual A-Arm, IRS 9.5 in (24.1 cm) Travel
RIDE COMMAND+
Available

Tires and Wheels

Electronic Power Steering
Not Equipped
Front Tires
25 x 8-12; 489
Rear Tires
25 x 10-12; 489
Wheels
12 in. (30.5 cm) Steel
44
HP
48"
WIDTH
11.5"
GROUND CLEARANCE
